Rockford Fosgate P1 10” is the first in a family of famous “Punch” subwoofers. The P1S2-10 features a 2-Ohm voice coil, 250 Watts RMS power handling, and can accommodate a grille insert using the included soft touch ABS trim ring.
Subwoofers

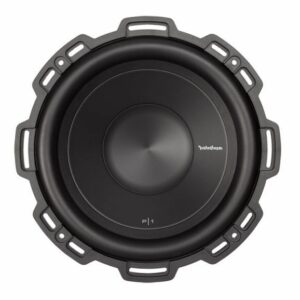

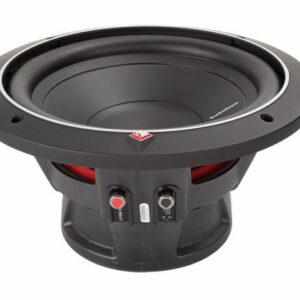

Rockford Fosgate Punch P1S2-10 – 10″ Subwoofer 500 Watts 2-Ohm
£101.99
Specifications:
- Linear spider with embedded 16 AWG tinsel leads
- High-temp voice coil with spun-laced Nomex® re-inforcement collar
- Kevlar fiber reinforced paper cone
- StampCast basket with integrated spider venting
- Soft touch ABS trim ring with optional grille
- Custom 10-AWG nickel plated push terminals
- Extended pole piece and bumped vented backplate
- Protective PVC textured magnet cover
- Size: 10″
- Nominal Impedance: 2-Ohm
- Power Handling: 250 Watts RMS / 500 Watts Max
- Voice Coil Diameter: 2.0″ (51.6mm)
- Magnet Weight: 45 oz. (1.28 Kg.)
- Speaker Connector: 10 AWG compression
- Fs (Hz): 30
- Re (Ohms): 3.6
- Le (mH): 2.81
- Qms: 3.00
- Qes: 0.61
- Qts: 0.52
- Vas (Liters): 40
- Sd (cm2): 370
- SPL (dB @ 1w/1m): 85
- Xmax (mm): 9.0
- Woofer Displacement: 0.13 cu. ft. (3.60 Liters)
- Cutout Diameter: 9.14 in. (232 mm)
- Mounting Depth: 5.33 in. (135.4mm)
- Shipping Weight: 10.9 Lbs. (4.94 Kg.)
Description
Additional information
| Brand | Rockford Fosgate |
|---|
