Cloud connectivity and rock-solid performance

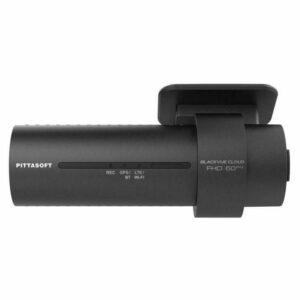

The DR750X-1CH is a single-channel dashcam with BlackVue Cloud connectivity.

The Full HD Sony STARVIS™ image sensor gives you best image quality under any light.

This stealthy dashcam also packs built-in GPS, Wi-Fi and native Parking Mode support via included hardwiring cable.

View and download videos easily with the BlackVue App.

Cloud support via Wi-Fi router or optional USB plug-in LTE module.

Full HD Cloud dashcam

Performance and Functionality

Sony STARVIS™ sensor with Full HD 1080p at up to 60 frames per second.

Record fluid videos at a wide 139° view angle.

The STARVIS image sensor ensures that your dashcam captures critical details even in low light.

Native Parking Mode with built-in voltage monitor to protect your vehicle battery (hardwiring cable included).

With the free BlackVue Cloud service, check on your car from anywhere, anytime.

Native Parking Mode

Hardwiring cable included

DR750X Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.

Parking Mode accessories support

DR750X Series is also compatible with all BlackVue Parking Mode Kits and Batteries.

GPS, Wi-Fi and Optional LTE

GPS: visualize the location of your vehicle on the map during video playback and overlay speed on videos (can be hidden in settings).

Wi-Fi: lets you connect to your BlackVue with a smartphone or tablet. Wi-Fi also lets your BlackVue connect to BlackVue Cloud via any home or mobile Wi-Fi hotspot (router).

LTE: connect the optional LTE connectivity module* via the USB port for the best Cloud experience.

(*) SIM card not included.

Set up (easily) and forget

BlackVue dashcams are very easy to install. Attach the front unit to the windshield behind the rear view mirror with the provided double-sided tape.

This way, the dashcam is invisible to the driver’s eye. Simply plug the power cords into the cigarette lighter / accessory power socket of your vehicle and it will automatically start recording as you turn ignition on (no need to push any button).

Once set, you can forget about it, knowing it will reliably record your drive.

Your videos are safe

Event Files Overwrite Protection: dashcams record in a loop, overwriting older files when the memory is full. BlackVue can prevent Event files (triggered manually or by impacts) overwriting. Up to fifty (50) files can be protected this way. You can choose to allow new Event files to overwrite past Event files, thus keeping the latest fifty.

Adaptive Format-Free File Management: this BlackVue-developed file system improves recording stability and requires less microSD card formatting.

SD Card Failure Alert: your BlackVue detects as soon as the microSD card fails and warns you with a “Please check SD card” voice alert.

Built-in Impact & Motion Detection

Automatically tags important files

While driving, your BlackVue detects impacts and sudden changes in speed. While parked, it also detects movements*.

Use the filters in the BlackVue App and Viewer

All videos are tagged (Normal, Event, Parking Mode motion or time lapse), so that you can easily find the relevant ones in the BlackVue Viewer for Windows and Mac OS or the BlackVue App for Android and iOS.

Sleek Interface

Programmable proximity sensor

Toggle audio recording ON and OFF by simply waving your hand in front of it. The sensor can also be configured to trigger Manual Event videos in the settings.

Wi-Fi button

Turn Wi-Fi ON/OFF with the push of a button. All actions are confirmed by a voice prompt.

Manage Videos Easily with the BlackVue App and Viewer

The BlackVue App (iOS/Android) and Viewer (Windows/Mac OS) are free to download and use.

Both allow you to change settings and review videos sorted by time and type (Normal/Event/Parking).

With the BlackVue App, connect via Wi-Fi to your dashcam to retrieve videos on the spot.

BlackVue Cloud

Me and My Car. Connected.

Connect to your BlackVue anytime, from anywhere in the world with BlackVue Cloud.

Enjoy remote Live View and Push Notifications to your phone.

Back up important videos to the Cloud remotely.

Play and download videos from your dashcam’s memory or the Cloud from anywhere.

LTE Connectivity Module (Optional)

The CM100LTE connects to your compatible BlackVue X Series dashcam to provide easy 4G LTE connectivity. All you need is a valid Nano SIM card. The CM100LTE connects via the USB port of your dashcam. Your BlackVue powers the module and automatically accesses the Cloud when the module is plugged in.

High Frame Rate for Extra Fluidity

The advantage of 60FPS video capture

The camera records extra fluid videos at 60 frames per second, keeping all details sharp even in fast action. With 60fps, motion blur is much reduced compared to 30fps. That means your BlackVue can better capture details–like license plates–even in fast-moving objects.

Note 1: the higher the image quality setting, the higher the bitrate and the bigger the file size. A bigger size will increase the time necessary to transfer a video file over Wi-Fi.

Note 2: Remote Live View using BlackVue Cloud is not affected by the image quality and framerate settings.

BlackVue DR750X-1CH features  Full HD Sony STARVIS™ image sensor for best image quality under any light. Also included are GPS logger, built-in Wi-Fi, Cloud connectivity, impact and motion detection.

Specification

• Model Name    DR750X-1CH
• Channel    1CH
• Highlights    Full HD, Cloud, Wi-Fi, GPS, Sony Sensor, External LTE Module
• Product Dimensions    W 118.5 mm (4.67″) x H 36 mm (1.42″) / 103 g (3.63 oz)
• Memory Support    microSD card up to 256GB
• Recording Modes    – Normal,– Event (Impact Detection / Speed Limit / Manual),– Parking Mode (Impact+Region-based Motion Detection, Timelapse+Events)
• Parking Mode    YES (with 3-wire hardwiring cable – included)
• Parking Mode Event Voice Notifications    YES
• Imaging Sensor    Sony STARVIS™ CMOS Sensor (Approx. 2.1MP)
• Viewing Angle    Diagonal 139°, Horizontal 116°, Vertical 61°
• Resolution Frame Rate    Full HD @60fps * Frame rate may vary during Wi-Fi streaming
• Video Codec    H.264 (AVC)
• Image Quality and Bitrate Front/Rear    Highest (Extreme): 25 Mbps Highest: 12 Mbps High: 10 Mbps Normal: 8 Mbps
• Format Free    YES (Adaptive)
• Event File Overwrite Protection    YES (up to 50)
• SD Card Failure Alert    YES
• Scheduled Reboot    YES
• Video File Extension    MP4
• Wi-Fi    Built-in (802.11 b.g.n)
• Cloud Compatible    YES
• GPS    Built-in (Dual Band : GPS, GLONASS)
• Microphone    Built-in
• Speaker    Built-in
• Impact Sensor    3-Axis Acceleration Sensor
• LED Indicators    Recording LED, GPS/BT LED, LTE/Wi-Fi LED, Front Security LED, Proximity Sensing indicator LED
• Button    Button: Wi-Fi ON/OFF (Tap) Proximity sensor: Mic ON/OFF / Trigger Manual Recording / OFF (configurable)
• Operation Temperature    -20 °C − 85 °C (-4 °F − 185 °F)
• Storage Temperature    -20 °C − 90 °C (-4 °F − 194 °F )
• High Temp Cut Off    Approx. 85 °C (185 °F)
• Backup Battery    Built-in supercapacitor
• Input Power    DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
• Power Consumption Hour    Normal Mode (WiFi On / GPS On) : 275mA / hour
• Normal Mode (WiFi Off / GPS On) : 240mA / hour Parking Mode (WiFi On / GPS Off) : 220mA / hour Parking Mode (WiFi Off / GPS Off) : 185mA / hour * Actual power consumption may vary depending on use conditions and environment
• Certifications    FCC, CE, RoHS, Telec, WEEE, IC
• software    BlackVue Viewer * Windows 7 or higher and Mac Yosemite OS X (10.10) or higher
• Application    BlackVue Application (Android 5.0 or higher, iOS 9.0 or higher)
• Others    Adaptive Format-Free File Management System
• LTE    External (optional)

Whats Included

• Front Camera
• 32GB microSD card
• Hardwiring power cable
• Cigarette lighter power cable
• microSD card reader
• Cable clips (5EA)
• Double-sided tape for the Mounting Bracket
• Pry tool
• Quick start guide
